ATEX Fixed Ethylene Oxide ETO Sensor Detector C2H4O Gas Monitor HFT-C2H4O

1 Piece
MOQ
$259.00(1 - 99 Pieces) $207.00(100 - 199 Pieces) $187.00(>=200 Pieces)
価格
ATEX Fixed Ethylene Oxide ETO Sensor Detector C2H4O Gas Monitor HFT-C2H4O
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 year, 1 Year
Type: Fixed Type
Customized support: OEM, ODM, C2H4O Gas Detector
Model Number: HFT-C2H4O
Product name: ATEX Fixed Ethylene Oxide ETO Sensor Detector C2H4O Gas Monitor
Detecting Gas: C2H4O
Sensor: ETO
Measure Range: 0-100ppm
Name: C2H4O Gas Detector
Working Voltage: DC24V
Output signal: 4-20mA
Certificate: ISO9001 CNEx CE ATEX
Sampling method: Natural Diffusion
基本情報
証明: ISO9001 CNEx CE ATEX
Model Number: HFT-C2H4O
お支払配送条件
Packaging Details: Fixed Gas Detector+Instruction+certificate+warranty card
製品の説明
Products Description

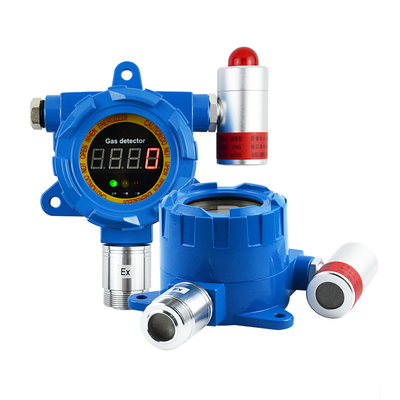

ATEX Fixed Ethylene Oxide ETO Sensor Detector C2H4O Gas Monitor

The LED display gas detector is fixed to monitor the gas concentration in air continuously. It can send signal to an alarm lamp or detection controller.When the gas concentration exceed preset alarm value, it will make alarm immediately. With a relay output , the detector can drive fan or solenoid valve.

Product Features:
● CE,ATEX certificate
● Explosion proof: Exd II CT6
● Water dust proof: IP65
● Acousto-optic alarm
● Die casting aluminum shell
● Alarm level indicators
● One year free warranty
Details Images
Product Paramenters
● Two stage alarm with sound and light, alarm point is adjustable.
● Be used in 24 hours continuous online monitoring of gas concentration in the filed.
● With zero calibration functions, makes the detection more accurate and reliable.,
● With relay output, can drive ventilator or solenoid valve.
● With 4-20 mA analogue output, can be integrated into a Distributed Control System (DCS).
● Strong, durable and explosion-proof shell and water dust proof shell suitable for hazardous places
● With an audible & visual alarm it will make alarms when gas concentration exceed a certain value.
Product Size:
144*190*91mm
Working voltage:
DC24V
Product weight:
1355g
Output signal:
4-20 mA
Sensor type
ETO
water dust proof
IP65
Detect Gas:
C2H4O
Zero shift:
2%F.S
Measure range:
0-100ppm
Response time:
≤20s
Alarm point:
10ppm
Features:
with relay output signal
Display:
LED display
Temperature range:
- 20 ℃ ~ 50 ℃
Humidity:
15%-90%(RH)
Ambient Humidity:
15%-90%(RH)
Explosion-proof number:
CE101084
Explosion-proof :
Exd II CT6
Transmission distance:
<1000 m
Optional：
acousto-optic alarm lamp
Transmission cables:
 three core shielded cable 3 x 1.5 mm2
Customer Feedback & Cases
Product packaging

Carton box+English manual+Warranty card


Air/Sea Fast Shipment

Company Profile
Xi'an Huafan Technology Co., Ltd founded in 2003, specialized in toxic and hazardous gas detection and smart life filed, including research and develop products and operation service. It’s a high-tech enterprise from R & D to technology services and whole industry chain.
We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company's products, currently composed of 6 senior engineers.
We strictly control every link of production,we has its own regular production workshop, from production to quality inspection to the factory, in accordance with the strict implementation of production standards, we aim to provide customers with high quality products, we are constantly learning, improve and perfect, in the future, I believe we will become better and better.
Certifications
Our fixed gas detector has industrial production standards and international export standards,we have CE,ATEX ,Cnex IP65 certificate for the fixed gas detectors.
