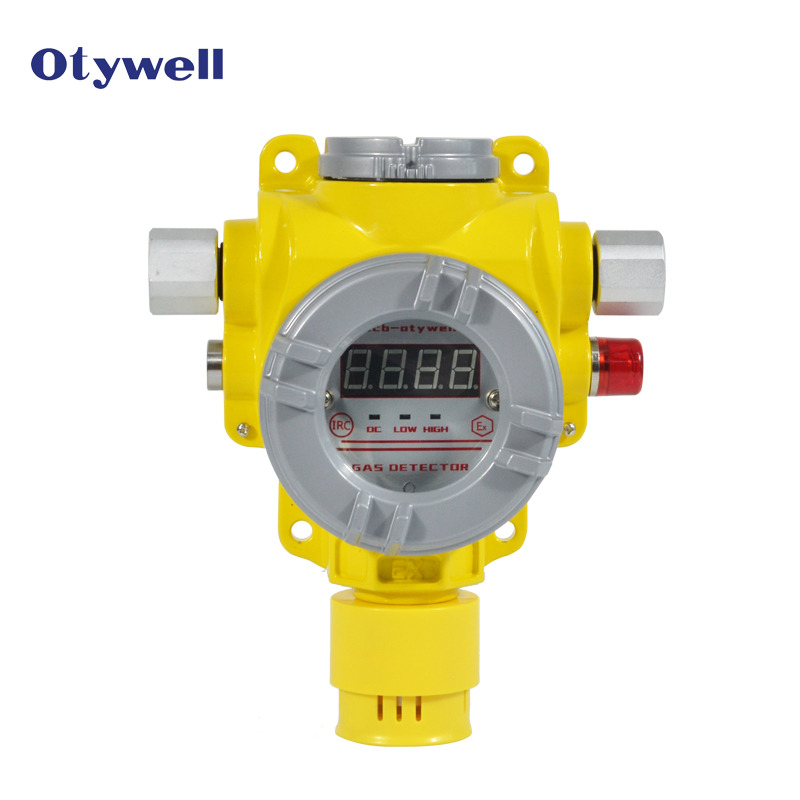

Atex Approved Oxygen O2 Gas Detector 212 * 195 * 80 (mm)

1.0 Sets
MOQ
Atex Approved Oxygen O2 Gas Detector 212 * 195 * 80 (mm)
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 year
Type: gas detector
Customized support: OEM, ODM
Model Number: TCB2
Detection gas: combustible gas / oxygen and toxic gas (see technical parameters)
Sampling method: natural diffusion
Working power: DC24V / 36V (two bus)
Response time: T90 <20s
Detection accuracy: ± 5% FS
Working temperature: -40 ℃ ~ 70 ℃, toxic gas: -20 ℃ ~ 50 ℃
Humidity: ≤95% RH
Connecting cable: RVVP 4 * 1.5mm2
Transmission distance: ≤1500m
Appearance size: 212 * 195 * 80 (mm)
基本情報
Model Number: TCB2
お支払配送条件
Packaging Details: aluminum alloy box or corrugated case
Supply Ability: 100000 Set/Sets per Month
製品の説明

atex approved oxygen O2 gas detector

Product Description



TCB2 series point gas detectors can be combined in four or one in five according to different gases. They are manufactured using convenient wireless remote control operation technology, high-performance sensors combined with sophisticated SMD process, and the instrument has good repeatability and temperature resistance Humidity interference, long service life, easy operation and other advantages.

TCB2 point type gas detector adopts two-wire or four-wire system structure, and the monitoring results can be checked away from the scene by monitoring instruments or controllers. It is suitable for online real-time monitoring of toxic gases and flammable and explosive gases in various environments. The all-in-one combination can intuitively detect the concentration of multiple gases through the LCD screen and display them separately.



Company Information



Henan otywell electronic technology co., LTD. (referred to as otywell) was established in zhengzhou high-tech zone in 2009, is a professional gas detection alarm control instrument, dust detector, flame detector, alcohol detector, gas analyzer, positive pressure air respirator and other safety protection equipment research and development, assembly, production and sales manufacturer in China.
