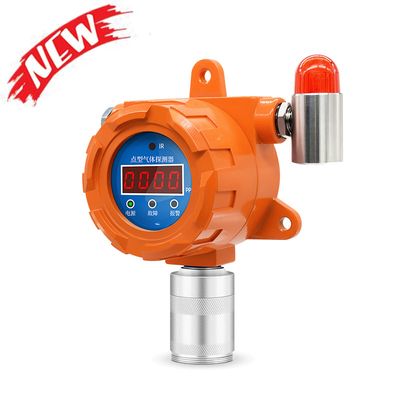

Introduction of SO2 Gas Detector
MK-800 explosion proof type fixed SO2 gas detector adopts modular design, digital display, and high quality and reliable gas sensitive elements, it is manufactured by excellent SMD craft. Featuring the excellent repeatability and stability. This equipment can be applied to explosive gas atmospheres hazardous location: zone 1 and 2, it is suitable to use in gas safety detection and alarm at industrial sites where combustible gas exists, such as oil refineries, chemical plants, liquefied gas stations, gas boiler rooms, refueling stations, spray booths, etc.
SO2 Fixed Gas Detector Detail
Parameter
| Project | parameter |
| Detection principle | Catalytic combustion; Electrochemical principle; Infrared principle |
| Sampling method | Natural spread |
| Display method | 4-digit LED digital tube displays the concentration value |
| Detect gas | Combustible gas and toxic gas (see Appendix 1) |
| Status indication | 3 LED indications: power, fault, alarm (different states indicate different levels) |
| Debug mode | Infrared remote control |
| Ambient temperature | -40℃~70℃ (flammable) |
| -20℃~50℃ (toxic gas) | |
| Relative humidity | <95% non-condensing |
| Power supply | DC24V±6V |
| Output signal | Current (4~20) mA or RS485 |
| Switch | 2 (first-level alarm point, second-level alarm point) |
| Power consumption | ≤3W; |
| Transmission distance | ≥1000m |
| Total Weight | ≤2000g |
| pressure limit | 86kPa~106kPa |
Company Strength
FAQ
1.Can I have a sample order to test quality?
Yes, we re commend and welcome sample order to test and check before order.
2.What is the lead time?
Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.
3.Do you have any MOQ limit?
We don't have a MOQ limit, 1 pc are also welcome.
4.Do you offer guarantee for the products?
Yes, we offer 1 or 2 years guarantee for the products.
5.If I order big quantity, Can I have a cheaper price?
We will reduce the price according to the specific quantity and your requirements for the product.
6.How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
