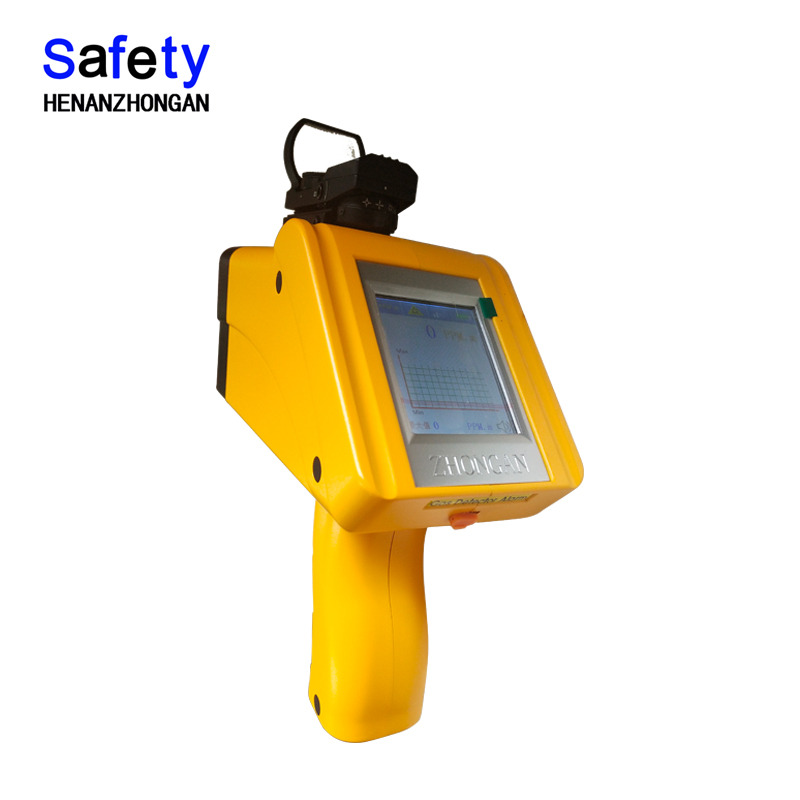

S350AS Handheld Laser Methane Telemetry Instrument CH4 gas concentration monitor
The S350AS hand-held laser methane telemetry instrument consists of optical and mechanical system, signal processing system, display and alarm system and shell components. It is mainly used to measure the concentration of methane or methane-containing gases (natural gas, gas or similar gases) over a long distance, and can be widely used for rapid positioning and detection of gas pipelines.
The S350AS handheld laser methane telemetry instrument emits an infrared laser to the detection point, which can quickly measure the concentration of air mass between the detection point and the telemeter. In order to observe conveniently, the telemeter also emits a visible red laser to the detection point at the same time. The detector can detect the methane concentration value of the detected location in real time and accurately, display and store it, and give an sound and light alarm when the alarm value exceeds, so that the personnel can make follow-up disposals.
Optional colors: orange, grey, blue, yellow
Optional appearance: other styles can be customized according to customer's needs
Product Parameters
S350AS Handheld Laser Methane Telemetry Instrument | |
Detection range | (0~5000)ppm.m; (0~10000)ppm.m; (0~50000)ppm.m; (0~100)%LEL |
Detection distance | (0~50)m;(0~100)m;(0~200)m |
Minimum detection limit | 1ppm.m |
Accuracy | ±5%(relative true value) |
Working time | 8h |
Display mode | 2.4 touch color screen |
Alarm display | Concentration value turn red |
Alarm volume | ≥70dB(1 meter) |
Environment temperature | (-20~50)℃ |
Relative humidity | (0~95)%RH, No condensation |
Ingress protection | IP65 |
Weight | 800g |
Size | (180×180×80)mm |
Product features
Miniaturized design, easy to carry, service life up to 10 years
Fast response at millisecond level, greatly reduce inspection time, improve work efficiency
PPM class high sensitivity, gas leakage caused by early loosening of screw can also be detected in time
Non-contact detection, especially suitable for areas where personnel are difficult to access, or higher position from the ground
Can be tested through glass to ensure the personnel safety
Fingerprint characteristics, only response to the detected gas, can not interfered by other gases
Not poisoning, drifting, greatly increase the product service life
