Handheld Laser Methane Gas Detector Manufacturer with High Quality

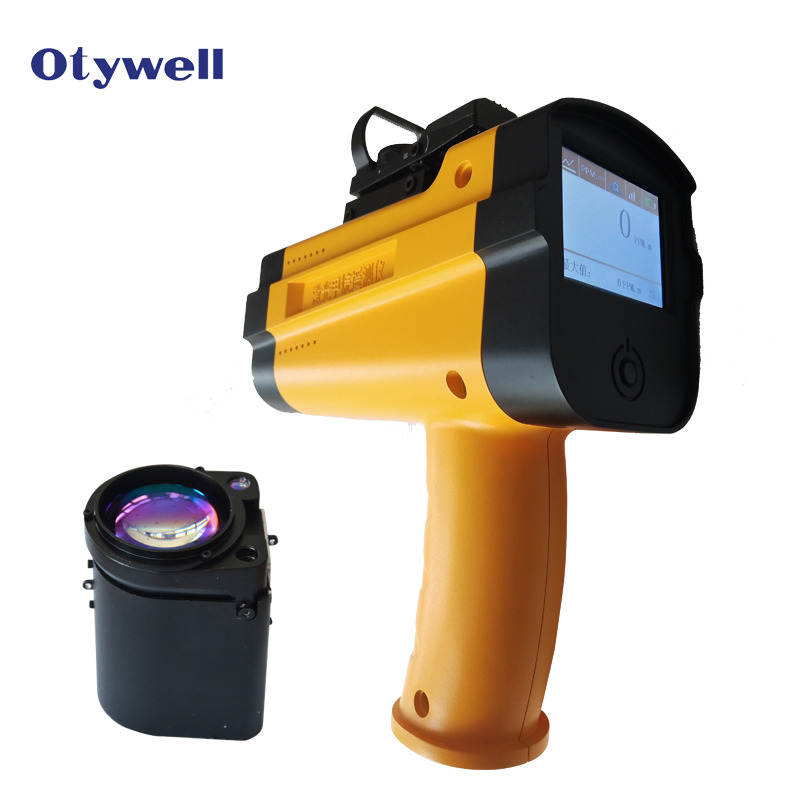

G6000A handheld laser methane telemeter is composed of optomechanical system, signal processing system, display and alarm system and shell components. It is mainly used to measure the concentration of methane or methane-containing gas (natural gas, gas or similar gas) at a long distance, and can be widely used for rapid positioning detection of gas pipeline networks.
The G6000A laser methane telemeter emits an infrared laser to the detection point, which can quickly measure the air mass concentration between the detection point and the telemeter. For easy observation, the telemeter also emits a visible red laser to the detection point. The telemeter can detect the methane concentration value in the checked location in real time and accurately, and display and store it. When the alarm value is exceeded, an audible and visual alarm is given to facilitate the personnel to make subsequent disposal.
Main function
Product features:
Miniaturized design, easy to carry and long life ten years.
Quick response in milliseconds, greatly shorten the inspection time and improve work efficiency.
PPM level high sensitivity, gas leakage caused by early loosening of screws can also be detected in time.
Non-contact detection, especially suitable for areas where people are difficult to access. Or higher up from the ground.
It can be inspected through glass to better protect the personal safety of patrol inspectors.
Fingerprint characteristics, unique response to the measured gas, without interference from other gases.
It will not be poisoned or drifted, which greatly increases the service life of the product.
Technical index
Technical Parameters
Detection range: multi-range optional (0 ~ 5000) ppm.m, (0 ~ 10000) ppm.m, (0 ~ 50,000) ppm.m, (0 ~ 100)% LEL
Telemetering distance: (0 ~ 100) m; (0 ~ 300) m
Minimum detection limit: 1ppm.m
Accuracy: ± 5% (relative true value)
Response time: 0.1s
Standby time: not less than 8h
Power supply: lithium battery (rechargeable lithium battery)
Display mode: 2.4 inch LCD
Alarm display: the screen changes with the change of concentration value
Alarm volume: ≥60dB (at 1 meter)
Size: 180mm × 180mm × 80mm
Net weight: 800g
Protection grade: IP65
Explosion-proof grade: Ex ib IIA T3 Gb
Working environment: Temperature: (-20 ~ 50) ℃ Humidity: (0 ~ 95)% RH, no condensation
Battery voltage: 7.4V
Battery capacity: 3000mAH
