BT-AEC2689 30M CH4 Methane Range Finder Laser Handheld Gas Detector

1 set
MOQ

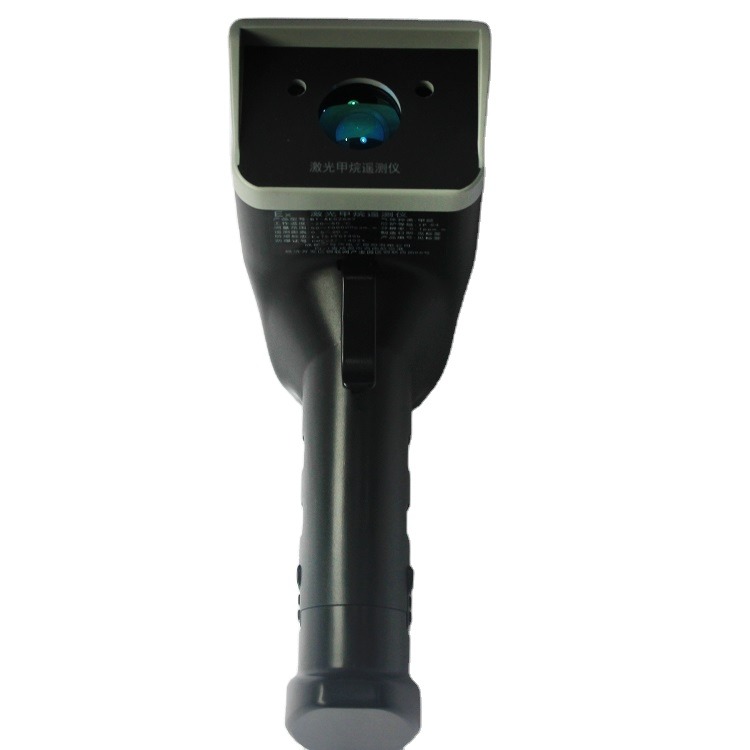

BT-AEC2689 30M CH4 Methane Range Finder Laser Handheld Gas Detector
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: BT-AEC2689
Product name: 30M handheld laser gas detector ch4 methane gas telemeter
Detection range: 0~100%LEL, 0~100%VOL
Detection distance: 0-30M
Minimum detection limit: 1ppm.m
Detecting gas: methane
Response time: ≤10s
Accuracy: 0~1%, ≤±0.05%
Alarm display: Concentration value flashes
Alarm volume: ≥75dB(1 meter)
Environment temperature, Humidity: (-40~70)℃, ≤93%RH
証明: CNEX
基本情報
証明: CNEX
Model Number: BT-AEC2689
お支払配送条件
Packaging Details: 30M handheld ch4 methane gas telemeter will be packed in code case in carton as international freight standard, or as customer require.
製品の説明

30M handheld ch4 methane gas telemeter laser gas detector
Products Description
Model Number
BT-AEC2689
Brand Name
ACTION
Place of Origin
Sichuan, China
Detectable gases
CH4
Measurement method
Remote measurement
Detection principle
TDLAS
Detecting range
0-100000ppm.m
Detection laser class
Class I
Indicate laser class
Class IIIR eye can not be directly looked at
Detection distance
0~30m
Explosion-proof grade
Exib IIC T4 Gb
Alarm mode
Sound and vibration
Display
LCD
Protection grade
IP54
Response time
<0.1s
Display resolution
≤0.1ppm·m
Life
＞5 years(without battery)
Power supply
Lithium ion battery
Operating temperature range
-20℃~+50℃
Humidity
0~98%RH
Operating hours
≥8h
Certificate
CNEX
Warranty
12months

Product function description:

BT-AEC2689 hand-held laser methane telemetry instrument consists of optical and mechanical system, signal processing system, display and alarm system and shell components. It is mainly used to measure the concentration of methane or methane-containing gases (natural gas, gas or similar gases) over a long distance, and can be widely used for rapid positioning and detection of gas pipelines,such as city gas transmission and distribution pipelines, pressure regulating stations, gas storage tanks, gas filling stations, residential buildings, petrochemicals and other places where gas leakage may occur.

Main features description:

1.Long product life cycle(5-10years), low operation and maintenance cost; 2.No cross interference between different gases, better environmental adaptability; 3.Easy to install and adjust, free of calibration and maintenance; 4.Wide measuring range, high dynamic range(0~100% VOL); 5.Intrinsically safe explosion-proof design, easy to operate and easy to carry.
